A lot of people ask me why I like the 240SX platform so much. My answer is simple; because I like them. In my own opinion I think the platform handles great, looks great, and has a lot of potential. Another bonus to these cars is that they are cheap to buy and modify. For those of you who do not know, the 240SX is a lightweight, rear wheel drive, 2+2 sports coupe. The S13 model came out in 1989 here in the United States, and continued through 1994 with three different body styles: the coupe, the fastback and the convertible (in 1994, the convertible S13 was offered only). In 1995, the S14 model was offered in a coupe only through 1998. The United States never saw the S15 model car (called the Silvia in Japan), so 1998 was the last year for the Nissan 240SX.

In the United States, the 240SX received the KA24 engine (single overhead cam from 1989 to 1990, and dual overhead cam engine from 1991 to 1998). This was a 2.4 liter four cylinder engine that put out a modest 155hp and 160lb-ft of torque at best. Overseas the Silvia, as it was called, was offered with a 1.8 liter turbocharged motor for the first couple years, and the 2.0 liter turbocharged motor from then on. These are the three engines that actually came in this chassis. However, with a rather large engine bay, there are countless options for engine swaps. Anything from a small four cylinder to a large eight cylinder will fit, as long as the motor sits in the RWD fashion.

With my car, I chose the 2.0 liter turbocharged motor from a 1993 180SX (The name of the fastback in Japan). This motor is called the SR20DET. This is the most popular swap for a 240SX in the United States, and there is good reason for it. It is relatively inexpensive to buy, it has enormous power potential (over 1000hp has been done), they bolt right in the car with very little modification, and they are very reliable.


To follow the build of my SR20DET powered 240SX Coupe, please check out the Project Forum section of this website.












Under The Hood:

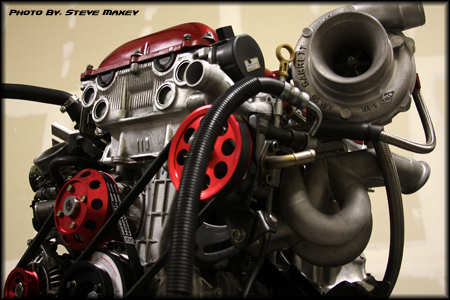

  • 1993 S13 v2 Redtop SR20DET
  • Bottom End Balanced and Bored to 86.5mm by Lyons Technical
  • Cylinder Head Ported and Polished by PortFlow Design
  • WPC Treated 86.5mm CP 9:1 Pistons
  • Scat H-Beam Connecting Rods
  • ARP Rod Bolts
  • ARP Main Studs
  • ARP Head Studs
  • ACL Race Main Bearings
  • ACL Race Rod Bearings
  • S14 Oil Pickup
  • WPC Treated Oil Pump Gears and Pistons
  • Ishihara-Johnson Crank Scraper and Baffle
  • Brand New SR20DE Crank
  • Apexi Metal Head Gasket
  • Supertech Dual Valve Springs
  • Supertech Titanium Retainers
  • Supertech Bronze Valve Guides
  • WPC Treated Tomei 260 Procam Camshafts (12mm of lift)
  • WPC Treated Rocker Arms
  • WPC Treated +1mm Ferrea Valves
  • Tomei Solid Lifter Conversion

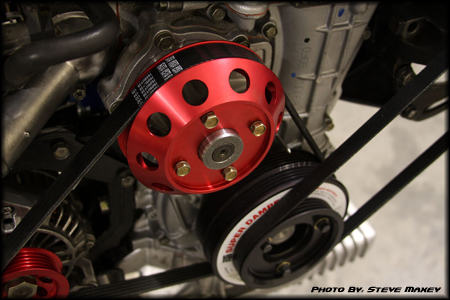

  • Megan Aluminum Accessory Pulleys
  • ATI Crank Super Damper
  • Full-Race Twin Scroll Manifold

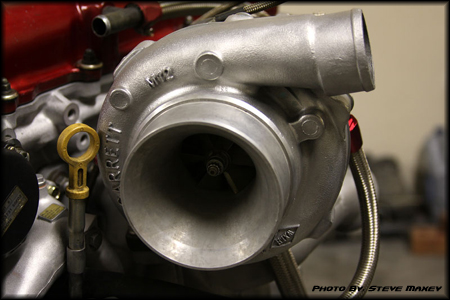

  • Full-Race/Garret GT3071R Twin Scroll
  • Tial/Full-Race 44mm External Wastegate
  • Full-Race 3" Turbo Elbow
  • Modified Megan 3" Down Pipe
  • Modified Apexi GT-Spec Exhaust (3"/3.75")
  • AEM Dryflow Intake Filter
  • Greddy Intake Manifold
  • Greddy V-Spec FMIC
  • SM Garage Hotpipe
  • Tial Q BOV
  • AEM Adjustable FPR
  • Tomei 740cc Injectors
  • Splitfire Coil Packs
  • Earls Oil Filter Relocation Kit
  • SM Garage SS Braided Turbo Lines
  • SM Garage SS Braided Fuel Line
  • Tomei Fuel Rail External FPR Adapter
  • NGK Iridium Plugs
  • Miata Battery

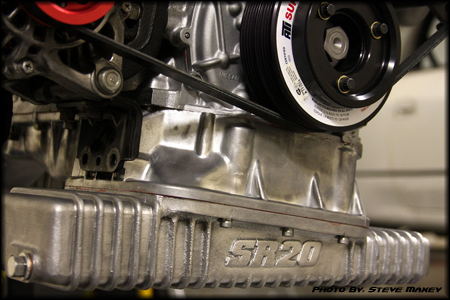

  • Greddy Oil Pan
  • Nismo Radiator Cap
  • Mishimoto Radiator
  • Circuit Sports Radiator Hoses
  • Altima Electric Fans
  • Megan Brake Master Cylinder Heat Shield
  • PTP Turbo Blanket
Power Transfer:
  • Kaaz 1.5 Way Clutch Type LSD
  • ACT 6 Pad Sprung Racing Clutch
  • ACT Heavy Duty Pressure Plate
  • ACT Streetlight XACT Chromoly Flywheel
  • ARP Flywheel Bolts
  • Nismo Engine and Transmission Mounts
  • B&M Short Shifter
  • Shaftmasters 1 Piece Aluminum Drive Shaft
Handling and Grip:
  • Complete 5 lug conversion
  • Tokico Blue Struts
  • Eibach Sportline Springs
  • Tanabe Chromoly Rear Sway Bar
  • 300ZX Aluminum Rear Uprights
  • SPL Tension Rods
  • Project Nissan Adjustable RUCA's
  • Megan Adjustable Toe Rods
  • DefSport Wilwood Caliper Brackets and Aluminum Rotor Hats
  • Wilwood Superlite 4 Pot Calipers
  • Wilwood Outer Brake Rotors
  • Wilwood Front SS Brake Lines
  • Hawk HPS Brake Pads
  • 300ZX Rear Brake Conversion
  • SPL SS Rear Brake and Clutch Lines
  • ES Sway Bar Bushings Front and Rear
  • ES Rear Subframe Bushings
  • 5 Zigen Typhoons 17x8 +27 Offset Up Front / 17x9 +35 Offset In Rear
  • Dunlop Direzza ZII 245/40/17 Tires Up Front / 255/40/17 in Rear
Inside the Car:
  • S14 OEM Front Seats
  • HKS Turbo Timer
  • Real S13 Silvia Manual Seatbelt Conversion
  • Nismo Leather Shift Knob
  • AEM EMS with MAP and Boost Control - Tuned By English Racing
  • Autometer ES Wideband Air/Fuel Gauge
  • Autometer ES Electronic Full Sweep Boost Gauge
  • Autometer ES Electronic Full Sweep Oil Pressure Gauge
  • Autometer ES Electronic Full Sweep Coolant Temperature Gauge
  • Autometer ES Electronic Full Sweep Fuel Pressure Gauge
  • JDM SR20DET Gauge Cluster with 180MPH Speedometer Conversion
  • Momo Steering Wheel Hub
  • Momo Mod 08 Steering Wheel
Outside the Car:
  • Clear Turn Signals
